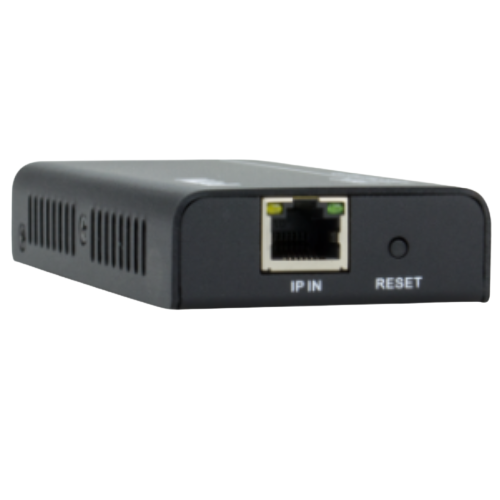

IP STREAMING IPM12

mini-size HDBaseT Extender Transmitter distributes HDMI signal via CATx cable at 70m with two-way PoH supported, and enables IR and RS232 pass through to control remote displays

TPHD 405 PT-WP I is a 2 gang Decora wall mount using HDBaseT technology to transmit HDMI or VGA (with analog audio) and RS232 and IR signals over a distance of 60 meters. The terminal receiver (PoC) supports automatic input selection. Technical data • 1 HDMI video input • 1 VGA video input • 1 audio input (mini-jack 3.5mm) • RS232 (captive screw connector) control input 1 x IR (mini-jack 3.5mm) in 1 x IR (mini-jack 3.5mm) out 1 x HDBaseT (RJ45) out • Supports Resolution signal 1080P for VGA and 800x600 ~ 1920x1200, 3D, 4Kx2K.

HDMI 2.0 over IP encoder, 18G, 4K@60Hz, 4:4:4; Apto Vision BlueRiver NT1000 technology, with HDMI/DP/control signal transmission over copper cable at 100m or OM3 fiber optic cable at 300m; features uncompressed video with zero-latency from encoder to decoder, seamless switching, Video wall, 1G Ethernet, IR, RS232, audio embedding, audio down-mixing, etc

mini-size HDBaseT extender with ARC function for HDMI and bi-directional IR signals, which contains a transmitter TPHD-BYH-T and a receiver TPHD-BYH-R. It transmits 4k signal up to 131ft (40m), 1080P signal up to 230ft(70m) over single Cat5e/Cat6 cable
