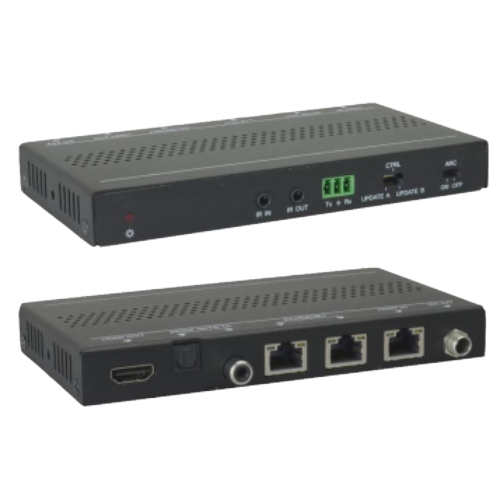

HDBT EXTENDER SET TPUH630

extending 4K@60Hz HDR video up to 131ft/40m over a single CAT6 cable, and enable IR and RS232 pass through to control local source device or remote display, it’s featured bi-directional PoC to save power supply from either Tx/Rx end.

Highly integrated full package solution that includes an HDBaseT wall plate transmitter with 1xHDMI and 1xVGA inputs and HDBaseT receiver with built-in amplifier and wall plate keypad controller. Wall plate transmitter scales the video up to 1920 x 1200 and transmits as far 100ft/30m over a single CAT6 cable

IP streaming decoder for HDMI, M-JPEG, 1080P, 100m, PoE

TPHD 405 PT-WP I is a 2 gang Decora wall mount using HDBaseT technology to transmit HDMI or VGA (with analog audio) and RS232 and IR signals over a distance of 60 meters. The terminal receiver (PoC) supports automatic input selection. Technical data • 1 HDMI video input • 1 VGA video input • 1 audio input (mini-jack 3.5mm) • RS232 (captive screw connector) control input 1 x IR (mini-jack 3.5mm) in 1 x IR (mini-jack 3.5mm) out 1 x HDBaseT (RJ45) out • Supports Resolution signal 1080P for VGA and 800x600 ~ 1920x1200, 3D, 4Kx2K.
